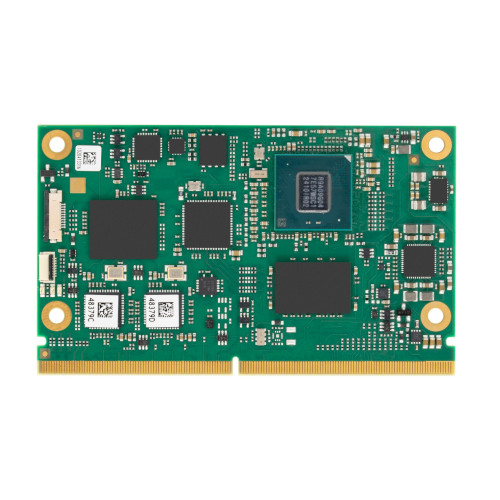

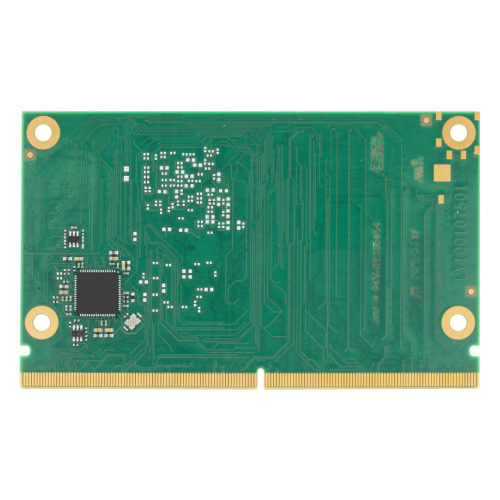

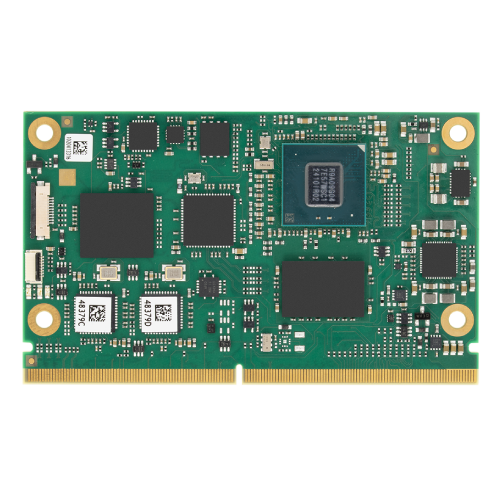

TRIA SM2S-G3E
The new TRIA SM2S-G3E SMARC 2.2 module family is equipped with the latest cost-effective and power-efficient RZ/G3E processors, manufactured by Renesas. The processor integrates up to four Arm® Cortex®-A55 cores, dedicated Arm Cortex-M33 Real-Time core, powerful Arm Mali™ GPU and a 4K capable VPU. The RZ/G3E family is the first RZ/G family with integrated Arm Ethos™-U55 NPU, helping developers to build powerful, cost-effective and energy-efficient machine learning (ML) applications at the edge. The typical design power ranges from 3 to 5 W.
TRIA SM2S-G3E provides fast LPDDR4 memory technology with inline ECC support, combined with up to 256GB eMMC Flash memory and high speed interfaces such as Dual Gigabit Ethernet, USB 3.2 Gen 2 and PCI Express Gen 3. Various standard interfaces for embedded applications such as dual CAN-FD, dual-channel LVDS or MIPI DSI, HDMI and MIPI CSI for connecting a camera are available.
The module is compliant with the new SMARC 2.2 standard, allowing easy integration with SMARC baseboards. For evaluation and design-in of the SM2S-G3E module, Tria Technologies provides a development platform and a starter kit. Support for Linux is available (Android support available on request).
Highlights
- Quad/Dual Core Arm Cortex-A55 up to 1.8GHz
- Arm Cortex-M33 Real Time Processor up to 200MHz
- Arm Ethos™-U55 Neural Processing Unit (NPU) up to 0.5TOPS
- Arm Mali™-G52 Graphics Processing Unit (GPU) up to 30GFLOPS
- Video Processing Unit up to 4k decode/encode
- Up to 8GB LPDDR4 SDRAM with inline ECC
- Up to 256GB eMMC Flash
- Dual independent Display support
- Dual-channel LVDS, MIPI-DSI, HDMI interface
- MIPI CSI-2 Camera interface
- 1x PCI Express x2/x1 Gen.3
- 2x USB 3.2 Host interface
- 3x USB 2.0 Host interface
- 1x USB 2.0 Host/Device interface
- 2x Gigabit Ethernet
- 1x MMC/SD/SDIO interface
- 2x CAN-FD Interface
- 2x I2S Audio Interface
- 14x GPIO
- UART, SPI, I2C
- SMARC 2.2 Compliant
Specifications
| Technology | Arm |
| Form Factor | SMARC™ Short Size |
| CPU | Renesas RZ/G3E processor family
Arm Cortex-M33 Real Time Processor at 200MHz Arm Ethos U-55 Neural Processing Unit (NPU) up to 0.5TOPS |
| Chipset | SOC |
| RAM | Up to 8GB 3200MT/s LPDDR4 SDRAM, soldered, inline ECC support |
| Flash | Up to 256GB eMMC Flash |
| Storage Interfaces | 1x MMC/SD/SDIO |
| USB | 1x USB 2.0 Host/Client, 3x USB 2.0 Host, 2x USB 3.2 Gen 1 Host or 1x USB 2.0 Host/Client, 1x USB 2.0 Host, 1x USB 3.2 Gen 2 x 1 Host (optional) |
| Serial Interfaces | 2x UART with TxD, RxD, RTS, CTS 2x UART with TxD, RxD only |
| Bus Interfaces | 1x PCI Express x2/x1 Gen. 3 5x I2C up to 400 Kbit/s 2x CAN-FD / CAN 2.0B 2x SPI (with two chip selects) |
| Display Controller | Arm Mali-G52 Graphics Processing Unit (GPU) Multicore 3D Graphics Acceleration, up to 30 GFLOPS OpenGL ES 3.2, OpenCL 2.0 and Vulkan 1.2 support Video Processing Unit (VPU) with hardware support for H.265 decode/encode up to 4k H.264 decode/encode up to 1080p |
| Display Interfaces | Dual independent Display support three different configuration options:
|
| Network Interface | 2x 10/100/1000BASE-T Ethernet, TSN/IEEE1588 support |
| Audio Interface | 2x I2S Audio |
| Security Device | Advanced Security, Safety, and Reliability integrated in the SOC Trusted Platform Module (TPM) 2.0 (optional) |
| Miscellaneous | Watchdog Timer for system reset (programmable, 1s … 600s) RTC / temperature compensated (optional) 14x GPIO, configurable as input or output, interrupt capable 64kbit ID EEPROM on I2C bus MIPI CSI-2 camera interface (CSI0, 2 lane) or MIPI CSI-2 camera interface (CSI1, 4-lane) |
| Feature Highlights | SMARC 2.2 compatible |
| Firmware | uboot |
| OS Support | Linux Board Support Package Android Board Support Package (on request) |
| Power Requirement | Power Main: +5V +/-5% Power Standby: +5V +/-5% Power Consumption 3-5 W typ. (depending on CPU and optional features) |
| Environment | Temperature Range: Commercial: 0°C … 70°C (operating) -20°C … 85°C (storage) Extended: -25°C … 85°C (operating) -40°C … 85°C (storage) Industrial: -40°C … 85°C (operating) -40°C … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing) 5 … 95% (storage, non-condensing) |
| Dimensions | 82 x 50 mm |
| Cooling | Heatspreader Heatsink |
| Carrier | TRIA SM2-MB-EP1 TRIA SM2S-MB-EP5 |
Order Info
| Order No. | Description | Reference | Status |
| 115688 | SMARC module based on Renesas RZ/G3E Quad-Core Cortex-A55 processor at 1.8GHz, NPU, 8GB LPDDR4, 32GB eMMC Flash, 2x GbE LAN, PCIe, 2x USB3.0 Host, 3x USB2.0 Host, 1x USB2.0 Host/Device, 2x CAN, SDIO, BT/WLAN, TPM, LVDS, HDMI, MIPI CSI-2 Camera input (CSI1, 4 lane) industrial temperature -40...+85°C (Engineering Sample - get in touch with your sales representative) | MSC SM2S-G3E- QC-35N06C1I ES1 PCBES | OR |
| 115687 | SMARC module based on Renesas RZ/G3E Quad-Core Cortex-A55 processor at 1.8GHz, NPU, 4GB LPDDR4, 16GB eMMC Flash, 2x GbE LAN, PCIe, 2x USB3.0 Host, 3x USB2.0 Host, 1x USB2.0 Host/Device, 2x CAN, SDIO, LVDS, MIPI CSI-2 Camera input (CSI0, 2 lane) industrial temperature -40...+85°C (Engineering Sample - get in touch with your sales representative) | MSC SM2S-G3E- QC-24N02A0I ES1 PCBES | OR |
| 115686 | SMARC module based on Renesas RZ/G3E Quad-Core Cortex-A55 processor at 1.8GHz, NPU, 2GB LPDDR4, 8GB eMMC Flash, 1x GbE LAN, PCIe, 1x USB3.0 Host, 1x USB2.0 Host, 1x USB2.0 Host/Device, 2x CAN, SDIO, LVDS, DSI, MIPI CSI-2 Camera input (CSI0, 2 lane) extended temperature -25...+85°C (Engineering Sample - get in touch with your sales representative) | MSC SM2S-G3E- QC-13N0A70E ES1 PCBES | OR |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 68488 | SMARC 2.0 Embedded Platform with PCI Express x4 slot, GbE, SATA, USB 3.0, USB 2.0, USB 2.0 OTG, RS232, CAN, SPI, eSPI, SMBus, I2C and GPIO interface, LVDS/eDP, DisplayPort and HDMI display interface, regulated backlight supply, HD/I2S audio interface, MIPI CSI-2 camera interface, mini PCI Express card slot, SD card slot, fan connector, CMOS battery, Mini- ITX form factor (170 x 170 mm), ATX power connector and single 12V/24V power jack, commercial temperature range 0..+70°C | MSC SM2-MB-EP1-001 PCBFTX |
| 83977 | SMARC 2.1 compatible embedded platform (146 x 80mm), 10-36V input voltage, 3x RS232, 2x CAN, dual RJ45 LAN with LED (1 x LAN i210) , 1x M.2 2280 Key M slot, mPCIe slot, 1x USB 3.0 Type A, 1x USB 2.0 Type A, 1x USB 2.0 internal, 1x μUSB 2.0 Host/Device, 2x SPI, I²C, 8 GPIO on FC, 1x HDMI, LVDS/eDP/DSI on JILI30 connector, μSD Card Slot, regulated backlight supply, I2S Audio, 1W Mono, camera connector, RTC battery. Industrial temperature range -40..+85°C, ARM full version | MSC SM2S-MB- EP5-002 PCBFTX |
| 83981 | SMARC 2.1 compatible embedded platform (146 x 80mm), 10-36V input voltage, 2x UART, 1x RS232, 2x CAN, 1x RJ45 LAN with LED, 1x USB 2.0 Type A, 1x USB3.0 Type A, 1x USB 2.0 internal, 1x μUSB 2.0 Host/Device, 2x SPI, 12 GPIO on FC, 1x HDMI , μSD Card Slot, LVDS/ eDP/DSI on JILI30 connector, regulated backlight supply, RTC battery. Industrial temperature range -40..+85°C, ARM slim version | MSC SM2S-MB- EP5-004 PCBFTX |
Cooling Options
| Order No. | Description | Reference |
| 115757 | Heatspreader for SM2S-G3E module, consisting of a single-piece aluminum plane and thermal pad for contact to the processor, with 2.7mm through-hole standoffs | MSC SM2S-G3E-01 HSP-001 |
| 115756 | Passive Heatsink for SM2S-G3E module, consisting of a single-piece aluminum pin cooler and thermal pad for contact to the processor, with 2.7mm through-hole standoffs | MSC SM2S-G3E-01 HSI-001 |
| 115755 | Passive Heatsink for SM2S-G3E module, consisting of a single-piece aluminum pin cooler and thermal pad for contact to the processor, with 2.7mm through-hole standoffs (Engineering Sample - get in touch with your sales representative) | MSC SM2S-G3E-01 HSI-001 ES |
Other Accessories
| Order No. | Description | Reference |
| 82479 | Debug Console (UART) Adapter for i.MX6-based Qseven and nanoRISC modules, with 8-pin FFC cable to connect COM module to 9-pin D-Sub connector | MSC Debug Console Adapter |
| 68948 | Debug Adapter for i.MX6-based Qseven, SMARC and nanoRISC modules, with 10-pin FFC cable to connect to COM module, adapter provides headers for JTAG connection to Lauterbach and/ or Goepel debuggers | MSC JTAG Adapter FFC 10-pin |
