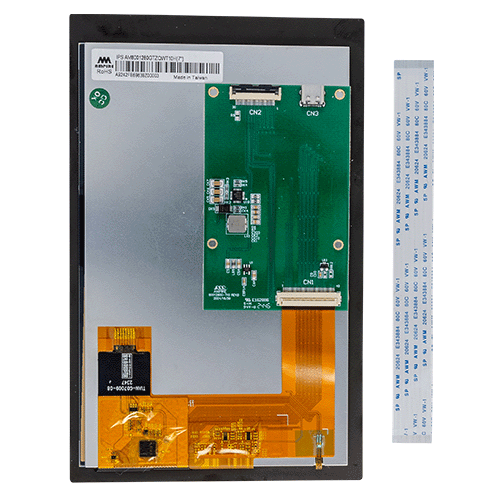

7-inch 800 x 1280 MIPI TFT LCD Touch Display

7 inch Amorphous-TFT-LCD module, composed of a 7” TFT-LCD panel and backlight unit.

Features

  • TRIA Part#:  AES-ACC-DISP-7INCH
  • LCD Size:  7.0 inch
  • Resolution:  800 x 1280
  • Panel Type:  IPS TFT, normally black
  • Display Interface:  MIPI DSI (4-lane or 2-lane)
  • Touch Interface:  I2C
  • Touch Type:  Capacitive Touch
  • Operating Temp.:  -20 C .. 70 C
  • Contrast Ratio:  1000
  • Brightness:  470 cd/m2
  • Viewing Angle (typ.):  85 deg
  • Response Time (typ.):  25 ms
  • MIPI Controller IC:  ILI9881C
  • Touch Controller IC:  ILI2132
  • Backlight Current:  80mA @15.0V
  • Certifications:  ROHS

Specifications are preliminary and subject to change. This display is expected to ship during the summer of 2025.
