MSC C6-MB-EV4
COM Express™, an open specification of the PICMG (PCI Industrial Computer Manufacturer Group), is a module concept to bring PCI Express and other high speed serial technologies like SATA, USB and digital display interfaces on a COM (Computer On Module).

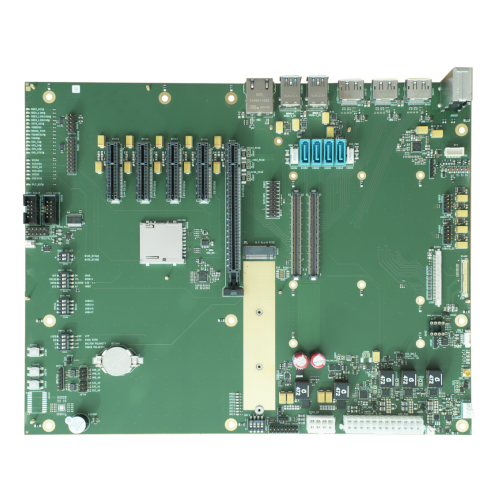

The MSC C6-MB-EV4 is a versatile carrier board designed to evaluate and prototype system electronics and software before an application specific baseboard is available. It provides the interface infrastructure for the COM Express Type 6 modules and offers a variety of IO connectors for external access. The carrier board supports PCI Express® Gen 4 and 2.5Gb Ethernet available with latest module generations.
This universal platform allows you to quickly test and choose the right product from the Avnet Embedded COM Express portfolio.
Highlights
- Three PCI Express® x1 slots shared with PCIe x4 slot
- One PCI Express® x16 PEG slot
- One M.2 Key-M Slot
- Four SATA connectors
- Four USB 3.0/2.0 connectors
- Four USB 2.0 pin header
- Three DisplayPort connectors
- LVDS interface on JILI30 connector
- Embedded DisplayPort connector
- VGA pin header
- Audio codec; three audio jacks and SPDIF
- LAN interface
- SD Memory Card Socket
- Power supply via ATX connector or wide input
- Extension connector for eSPI and LPC
- POST code display and dual RS232 on optional module
- ATX form factor
Specifications
| Technology | COM Express Type 6 Carrier |
| Form Factor | ATX |
| Storage Interfaces | 4x SATA connector SD card socket 1x M.2-Slot (Key ID M), type 2242/2280/22110, PCIe x4 Gen 3/4 Feature availability depending on installed module type. Please consult the product documentation for details. |
| Bus Interfaces | 1x PCI Express x4 slots 3x PCI Express x1 slots shared with the PCIe x4 slot 1x PCI Express x16 (PEG) slot Feature availability depending on installed module type. Please consult the product documentation for details. |
| Display Interfaces | VGA interface (Pin Header) LVDS interface (JILI30) eDP connector (40pin) 3x DisplayPort receptacle, DP++ capable Feature availability depending on installed module type. Please consult the product documentation for details. |
| Network Interface | 1x 1GbE / 2.5GbE from COM Express module Feature availability depending on installed module type. Please consult the product documentation for details. |
| Audio Interface | High-definition digital audio codec Line In / Line Out / Mic S/PDIF on pin header |
| Miscellaneous | Pin header for GPIOs shared with SD/Card eSPI/LPC pin header Optional POST code display on module Feature connector 4-pin fan connector PWM controlled RTC battery, CR2032 |
| Feature Highlights | Versatile carrier board for evaluation and prototyping |
| OS Support | BSP ( for onboard devices ) for Windows and Linux Feature availability depending on installed module type. Please consult the product documentation for details. |
| Power Requirement | Standard 24 pin ATX power and additional ATX 12V connector (wide input 8.5V to 20V) |
| Environment | Ambient Temperature 0° … +60°C (operating), -25° … 85°C (storage) Humidity 20 … 80% (operating, non-condensing), 5 … 95% (storage, non-condensing) |
| Dimensions | 305 x 244 |
| Certificates | UL/CE |
Order Info
| Order No. | Description | Reference | Status |
| 111650 | COM Express Type 6 Evaluation Carrier Boardwith various PCI Express x1, x4 and x16 slots, USB 3.0/2.0,GbE, M.2, SD card socket, SATA, DisplayPort, LVDS,eDP, VGA, HD audio interfaces ATX power connector.Dimensions: 305 x 244 mm (ATX form factor) | MSC C6-MB-EV4 PCBFTX | PV |
| 111163 | Extension module for MSC C6-MB-EV4, with LPC interface,dual RS232, POST code display Nuovoton Super I/O. | MSC C6-MB-EV-LPC-001PCBFTX | PV |
Accessories
5.0″ Display kit
| Order No. | Description | Reference |
| 81871 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 5.0" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM800480-050-KIT SETPAC |
7″ Display kit
| Order No. | Description | Reference |
| 78911 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 7.0" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM800480-070-KIT SETPAC |
10.1″ Display kit
| Order No. | Description | Reference |
| 78879 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 10.1" WVGA LCD with PCAP Touch Sensor and Touch Controller. Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch). | MSC DIS-AM1280800-101-KIT SETPAC |
12.1″ Display kit
| Order No. | Description | Reference |
| 78880 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 12.1" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM1280800-121-KIT SETPAC |
