MSC SM2S-G2UL

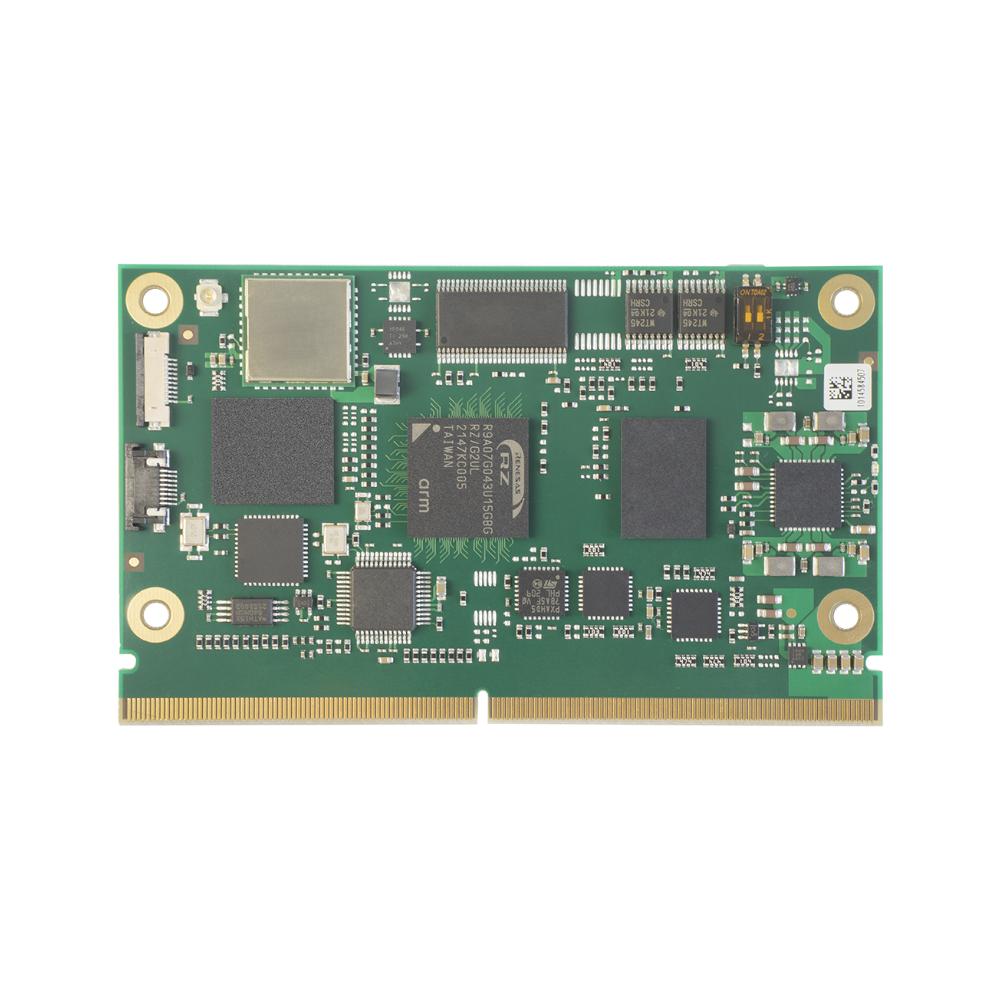

The new MSC SM2S-G2UL SMARC 2.1.1 module family is equipped with cost-effective and power-efficient RZ/G2UL Arm Cortex-A55 processors, manufactured by Renesas. The module integrates a single-core Arm Cortex-A55 processor running at 1.0 GHz, an Arm Cortex-M33 real-time processor and an Image Processing Unit to support entry level HMI applications. The typical design power ranges from 3 to 4 W.
The MSC SM2S-G2UL offers cost-effective DDR4 memory technology, combined with up to 256GB eMMC Flash memory. Various interfaces for embedded applications such as Gigabit Ethernet, USB 2.0, dual CAN-FD, dual-channel LVDS and MIPI CSI-2 for connecting a camera are available. An on-board Wireless Module is provided as assembly options.
The module is compliant with the new SMARC 2.1.1 standard, allowing easy integration with SMARC baseboards. For evaluation and design-in of the MSC SM2S-G2UL module, Avnet Embedded provides a development platform and a starter kit. Support for Linux is available (Android support on request).
Highlights
- ARM Cortex-M33 Real Time Processor at 200MHz
- Image Processing Unit
- Up to 2GB DDR4 SDRAM with inline ECC
- Up to 256GB eMMC Flash
- Dual-channel LVDS
- MIPI CSI-2 Camera Interface
- Up to 4x USB 2.0 Host interfaces
- 1x USB 2.0 Host/Device interface
- Gigabit Ethernet
- Wireless Module (optional)
- MMC/SD/SDIO interface (optional)
- Up to 2x CAN-FD interfaces
- Up to 2x I2S Audio interfaces
- 14x GPIO
- UART, SPI, I2C
- SMARC 2.1.1 Compliant
- Entry level HMI and Vision applications
Specifications
| Technology | Arm |
| Form Factor | SMARCâ„¢ Short Size |
| CPU | Renesas RZ/G2UL family - Single Core ARM Cortex-A55 at 1.0GHz, secure - Single Core ARM Cortex-A55 at 1.0GHz, non-secure Arm Cortex-M33 Real Time Processor at 200MHz |
| Chipset | Integrated in SOC |
| RAM | Up to 2GB 1600MT/s DDR4 SDRAM, soldered, inline ECC support |
| Flash | Up to 256GB eMMC Flash |
| Storage Interfaces | 1x MMC/SD/SDIO (optional, SDIO and WIFI/BT are mutual exclusive) |
| USB | 1x USB 2.0 Host/Client, 4x USB 2.0 Host or 1x USB 2.0 Host/Client, 1x USB 2.0 Host (optional) |
| Serial Interfaces | 2x UART with 2-wire hand shake 2x UART w/o hand shake |
| Bus Interfaces | 4x I2C up to 400 Kbit/s 2x SPI (with two chip selects) 1x CAN-FD or 2x CAN-FD (optional, LVDS and 2x CAN are mutual exclusive) |
| Display Controller | Image Processing Unit to support simple HMI graphics (i.e. blending, dither processing, clipping, gamma correction) |
| Display Interfaces | Dual-channel LVDS interface, 18 or 24 bit (up to 1920x1080) also usable as one single-channel LVDS interface (up to 1366x768) |
| Network Interface | 1x 10/100/1000BASE-T Ethernet Wireless Module with 802.11b/g/n and Bluetooth 5.0, single band 2.4GHz, soldered (optional, SDIO and WIFI/BT are mutual exclusive) |
| Audio Interface | 1x I2S Audio or 2x I2S Audio (optional, LVDS and 2x I2S are mutual exclusive) |
| Security Device | Advanced Security, Safety, and Reliability integrated in the SOC Trusted Platform Module (TPM) 2.0 (optional) |
| Miscellaneous | Watchdog Timer for system reset (programmable, 1s … 600s) RTC / temperature compensated (optional) 14x GPIO, configurable as input or output, interrupt capable 64kbit ID EEPROM on I2C bus MIPI CSI-2 camera interface (CSI0, 2 lane) or MIPI CSI-2 camera interface (CSI1, 4-lane) |
| Feature Highlights | SMARC 2.1.1 compatible |
| Firmware | uboot |
| OS Support | Linux Board Support Package Android Board Support Package (on request) |
| Power Requirement | Power Supply +5V +/-5%, 5V Standby Power Consumption 1-2 W typ. (depending on CPU and optional features) |
| Environment | Temperature Range: Commercial: 0° … 70°C (operating) -20° … 85°C (storage) Extended: -25° … 85°C (operating) -40° … 85°C (storage) Industrial: -40° … 85°C (operating) -40° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing) 5 … 95% (storage, non-condensing) |
| Dimensions | 82 x 50 mm |
| Certificates | UL / CE |
| Cooling | Heatspreader Heatsink |
| Carrier | MSC SM2-MB-EP1 MSC SM2-MB-EP5 |
