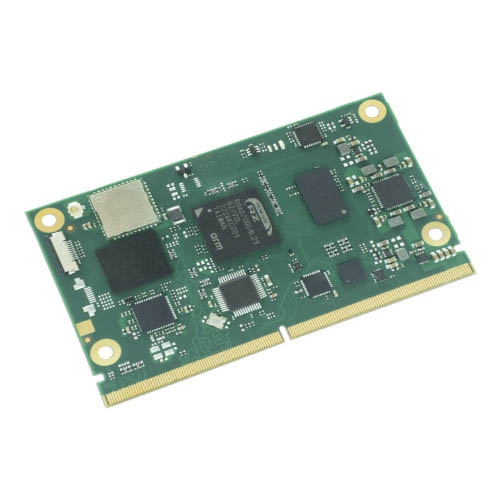

MSC SM2S-V2L
The new MSC SM2S-V2L SMARC 2.1.1 module family is equipped with cost-effective and power-efficient RZ/V2L Arm Cortex-A55 processor, manufactured by Renesas. The module integrates a single- or dual-core Arm Cortex-A55 processor running at 1.2 GHz, an Arm Cortex-M33 real-time processor and an efficient multimedia 2D/3D graphics and video processing unit (GPU and VPU). An additional DRP-AI (Dedicated AI-Accelerator) is provided by RZ/V2L processors. The typical design power ranges from 4 to 6 W.
The MSC SM2S-V2L offers cost-effective DDR4 memory technology, combined with up to 256GB eMMC Flash memory. Various interfaces for embedded applications such as Dual Gigabit Ethernet, USB 2.0, dual CAN-FD, dual-channel LVDS and MIPI CSI-2 for connecting a camera are available. An on-board Wireless Module is provided as assembly options.
The module is compliant with the new SMARC 2.1.1 standard, allowing easy integration with SMARC baseboards. For evaluation and design-in of the MSC SM2S-V2L module, Avnet Embedded provides a development platform and a starter kit. Support for Linux is available (Android support on request).
Highlights
- ARM Cortex-M33 Real Time Processor at 200MHz
- Arm Mali-G31 multimedia 2D/3D Graphics Processing Unit (GPU)
- H.264 Video Encoding and Decoding (VPU)
- DRP-AI (Dedicated AI-Accelerator)
- Up to 2GB DDR4 SDRAM with inline ECC
- Up to 256GB eMMC Flash
- Dual-channel LVDS
- MIPI CSI-2 Camera interface
- Up to 4x USB 2.0 Host interfaces
- 1x USB 2.0 Host/Device interface
- Dual Gigabit Ethernet
- Wireless Module (optional)
- MMC/SD/SDIO interface (optional)
- 2x CAN-FD interfaces
- 2x I2S Audio interfaces
- 14x GPIO
- UART, SPI, I2C
- SMARC 2.1.1 compliant
Specifications
| Technology | ARM |
| Form Factor | SMARCâ„¢ Short Size |
| CPU | Renesas RZ/V2L family with DRP-AI engine - Single Core Arm Cortex-A55 at 1.2GHz, secure - Single Core Arm Cortex-A55 at 1.2GHz, non-secure - Dual Core Arm Cortex-A55 at 1.2GHz, secure - Dual Core Arm Cortex-A55 at 1.2GHz, non-secure Arm Cortex-M33 Real Time Processor at 200MHz Embedded DRP-AI (Dedicated AI-Accelerator) |
| Chipset | SOC |
| RAM | Up to 2GB 1600MT/s DDR4 SDRAM, soldered, inline ECC support |
| Flash | Up to 256GB eMMC Flash |
| Storage Interfaces | 1x MMC/SD/SDIO (optional, SDIO and WIFI/BT are mutual exclusive) |
| Bus Interfaces | 4x I2C up to 400 Kbit/s 2x SPI (with two chip selects) 2x CAN-FD |
| Display Controller | Arm Mali-G31 multimedia 2D/3D Graphics Processing Unit (GPU) OpenGL ES1.1, 2.0, 3.0, 3.1 and 3.2 support OpenCL 2.0 Full Profile support Video Codec Processor with H.264 support |
| Display Interfaces | Dual-channel LVDS interface, 18 or 24 bit (up to 1920x1080) also usable as one single-channel LVDS interface (up to 1366x768) or MIPI-DSI Display Interface, 4 lanes, up to 1920x1080 @ 60fps (optional) |
| Network Interface | 2x 10/100/1000BASE-T Ethernet Wireless Module with 802.11b/g/n and Bluetooth 5.0, single band 2.4GHz, soldered (optional, SDIO and WIFI/BT are mutual exclusive) |
| Audio Interface | 2x I2S Audio |
| Security Device | Advanced Security, Safety, and Reliability integrated in the SOC Trusted Platform Module (TPM) 2.0 (optional) |
| Miscellaneous | Watchdog Timer for system reset (programmable, 1s … 600s) Real Time Clock (RTC) 14x GPIO, configurable as input or output, interrupt capable 64kbit ID EEPROM on I2C bus MIPI CSI-2 camera interface (CSI0, 2 lane) or MIPI CSI-2 camera interface (CSI1, 4-lane) |
| Feature Highlights | SMARC 2.1.1 compatible |
| Firmware | uboot |
| OS Support | Linux Board Support Package Android Board Support Package (on request) |
| Power Requirement | Power Main: +5V +/-5% Power Standby: +5V +/-5% Power Consumption 4-6 W typ. (depending on CPU and optional features) |
| Environment | Temperature Range: Commercial: 0°C … 70°C (operating) -20°C … 85°C (storage) Extended: -25°C … 85°C (operating) -40°C … 85°C (storage) Industrial: -40°C … 85°C (operating) -40°C … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing) 5 … 95% (storage, non-condensing) |
| Dimensions | 82 x 50 mm |
| Certificates | UL / CE |
| Cooling | Heatspreader Heatsink |
| Carrier | MSC SM2-MB-EP1 MSC SM2-MB-EP5 |
Order Info
| Order No. | Description | Reference | Status |
| 113809 | SMARC module based on Renesas RZ/V2L Dual-Core Cortex-A55 processorat 1.2GHz, DRP-AI, 2GB DDR4, 32GB eMMC Flash, 2x GbE LAN, 4xUSB2.0 Host, 1x USB2.0 Host/Device, 2x CAN, no SDIO, BT/WLAN,TPM, LVDS, MIPI CSI-2 Camera input (CSI1, 4 lane) industrial temperature-40...+85°C | MSC SM2S-V2L-DCN-15N02C1I PCBFTX | PV |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 68488 | SMARC 2.0 Embedded Platform with PCI Express x4 slot, GbE, SATA, USB3.0, USB 2.0, USB 2.0 OTG, RS232, CAN, SPI, eSPI, SMBus, I2C andGPIO interface, LVDS/eDP, DisplayPort and HDMI display interface,regulated backlight supply, HD/I2S audio interface, MIPI CSI-2 camerainterface, mini PCI Express card slot, SD card slot, fan connector, CMOSbattery, Mini-ITX form factor (170 x 170 mm), ATX power connector andsingle 12V/24V power jack, commercial temperature range 0..+70°C | MSC SM2-MB-EP1-001 PCBFTX |
| 83977 | SMARC 2.x compatible embedded platform (146 x 80mm), 10-36V inputvoltage, 3x RS232, 2x CAN, dual RJ45 LAN with LED (1 x LAN i210) , 1xM.2 2280 Key M slot, mPCIe slot, 1x USB 3.0 Type A, 1x USB 2.0 Type A,1x USB 2.0 internal, 1x USB 2.0 Host/Device, 2x SPI, I²C, 8 GPIO onFC, 1x HDMI, LVDS/eDP/DSI on JILI30 connector, SD Card Slot,regulated backlight supply, I2S Audio, 1W Mono, camera connector, RTCbattery. Industrial temperature range -40..+85°C, ARM full version | MSC SM2S-MB-EP5-002 PCBFTX |
| 83981 | SMARC 2.x compatible embedded platform (146 x 80mm), 10-36V inputvoltage, 2x UART, 1x RS232, 2x CAN, 1x RJ45 LAN with LED, 1x USB 2.0Type A, 1x USB3.0 Type A, 1x USB 2.0 internal, 1x USB 2.0 Host/Device,2x SPI, 12 GPIO on FC, 1x HDMI , SD Card Slot, LVDS/eDP/DSI onJILI30 connector, regulated backlight supply, RTC battery. Industrialtemperature range -40..+85°C, ARM slim version | MSC SM2S-MB-EP5-004 PCBFTX |
Cooling Options
| Order No. | Description | Reference |
| 110192 | Heatspreader for SM2S-G2L and SM2S-V2L module, consisting of asingle-piece aluminum plane and thermal pad for contact to the processor,with 2.7mm through-hole standoffs | MSC SM2S-X2L-01 HSP-001 |
Other Accessories
| Order No. | Description | Reference |
| 82479 | Debug Console (UART) Adapter for i.MX6-based Qseven and nanoRISCmodules, with 8-pin FFC cable to connect COM module to 9-pin D-Subconnector | MSC Debug Console Adapter |
| 68948 | Debug Adapter for i.MX6-based Qseven, SMARC and nanoRISC modules,with 10-pin FFC cable to connect to COM module, adapter provides headersfor JTAG connection to Lauterbach and/or Goepel debuggers | MSC JTAG Adapter FFC 10-pin |
